LAMINATING MACHINE MOD. ECO-POL

THE ECOLOGICAL LAMINATING MACHINE WITH POLYETHYLENE AND POLYPROPYLENE "THERMO", TOTALLY AUTOMATIC.

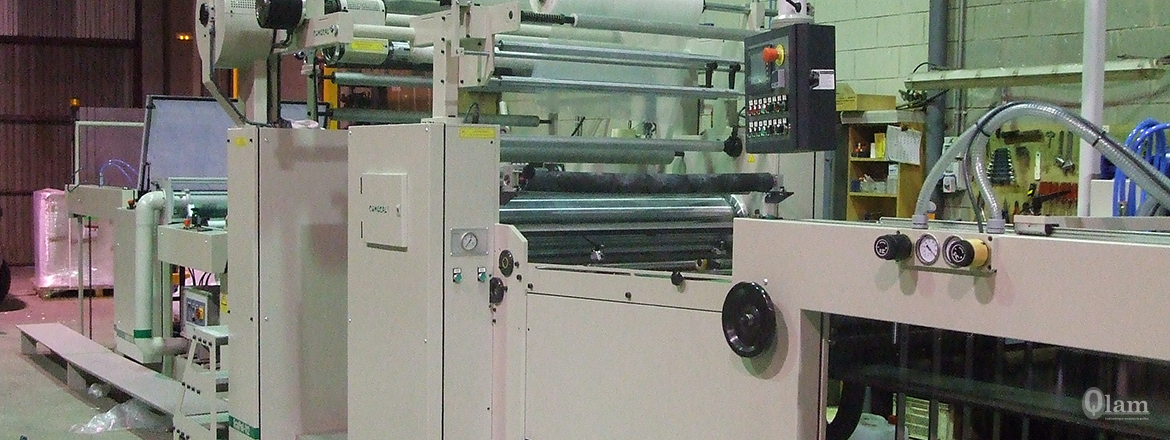

Ecopol Machine-1

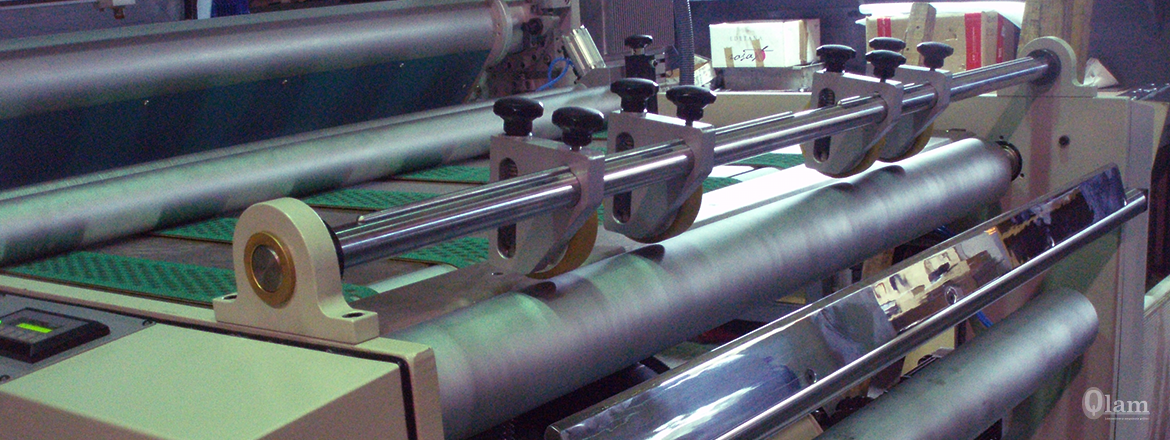

Ecopol Machine-2

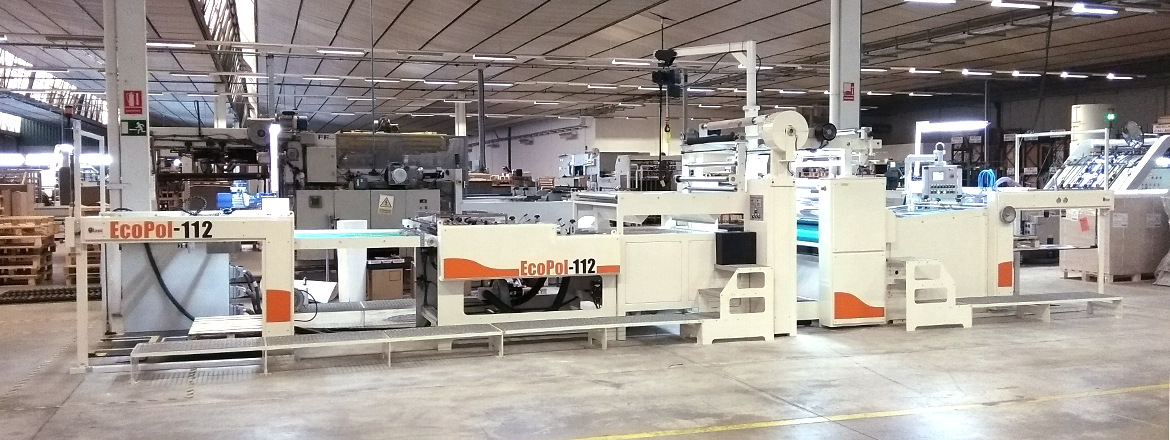

Ecopol Machine-3
Ecopol Machine-4

LAMINATING MACHINE ECO-POL

The laminating machine mod. EcoPol is designed to laminated with polyethylene on all types of paper and board by means of thermal lamination. To give greater versatility to the machine can also laminated with "thermo" polypropylene (Option).

ECO-POL is the follows main parts:

  • - Automatic sheet feeder.
  • - Hot roller Chrome and polished mirror finish with hydraulic pressure.
  • - Group bobbin (PE y PET) with electromagnetic clutch and brake.
  • - Sheets separator.
  • - Automatic stacker.
  • - Antistatic bars.
  • *Corona treatment (optional).
Equipped with control of maneuver by means of automaton and touch screen to control the utilities of the machine.


MAIN FEATURES

CHARACTERISTICS MOD. ECOPOL-112
Maximum size of sheet 112 x 140 cm
Minimum size of sheet 30 x 25 cm
Maximum mechanical speed 60 m/min
Paper thickness 150 - 500 gr/m2
Total power 45 Kw/ 48 Kw *
Dimensions machine 2'30 x 3'10 x 10 m
Air compressed a 6 bar 180 l/min

+ INFO

  • Design and Production: Qlam®
