THERMOLAMINATING MACHINE MOD. IRIS-WF

"AUTOMATIC AND COMPACT. IDEAL FOR MEDIUM AND SMALL PRODUCTIONS AT LOW COST."

Machine IrisWF-1
Machine IrisWF-2
Machine IrisWF-3
Machine IrisWF-4

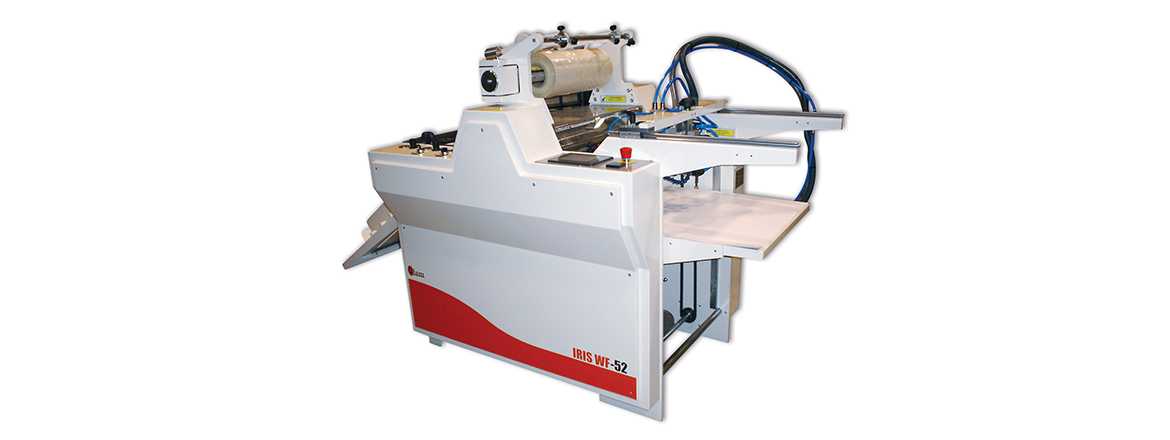

THERMOLAMINATING MACHINE MOD. IRIS-WF

The laminating machine QLAM® model IRIS-52WF and IRIS-72WF, are designed to laminate with polypropylene all types of paper and cardboard by thermal lamination.

  • - Ideal for small and medium printers digital or offset.
  • - Laminated at very competitive prices.
  • - Technology adapted to the production.
  • - Easy and intuitive operation.
IRIS-WF are the follows main parts in only one unit

  • - Automatic sheet feeder.
  • - Hot roller Chrome and polished mirror finish with preumatic pressure.
  • - Sheets separator.
  • - System anticurling.
  • - System cut leftover above the bobbin.
  • - Laminated sheet collection table.
  • * Bobbin with expandable pneumatic shaft (optional)
  • * Pressure multiplier (optional).

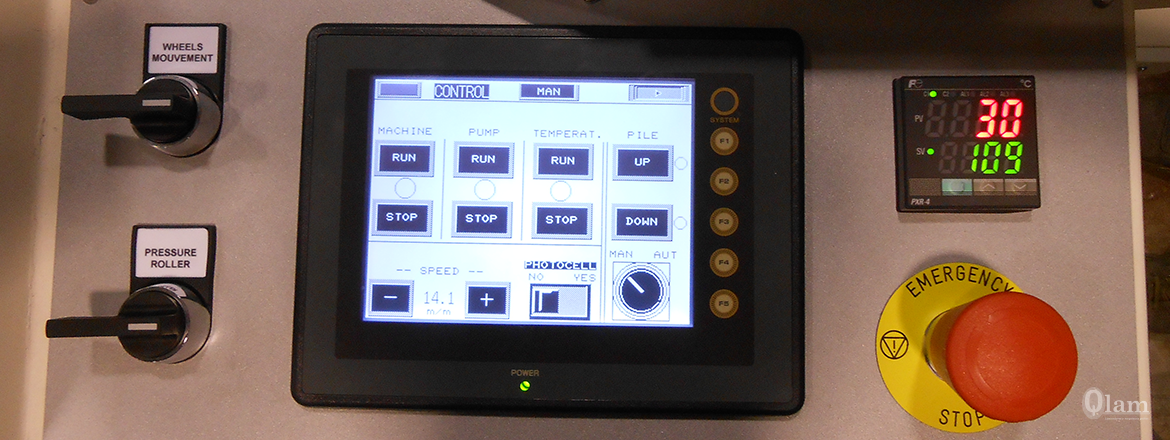

Equipped with control of manoeuvre by means of automation and touch screen to control the utilities of the machine.


MAIN FEATURES

MODEL IRIS-52WF MODEL IRIS-72WF
Maximum sheet size 52 x 72 cm 72 x 102 cm
Minimum sheet size 20 x 20 cm 20 x 20 cm
Maximum mechanical speed 20 m/min 20 m/min
Paper thickness 110 - 450 gr/m2 110 - 450 gr/m2
Total power 5,2 Kw 6,5 Kw
Dimensions machine 1'1 x 2'5 x 1'5 m 1,3 x 3,1 x 1,5 m
Air compressed a 6 bar 50 l/min 50 l/min

+ INFO

  • Design and Production: Qlam®
  DATA SHEET
