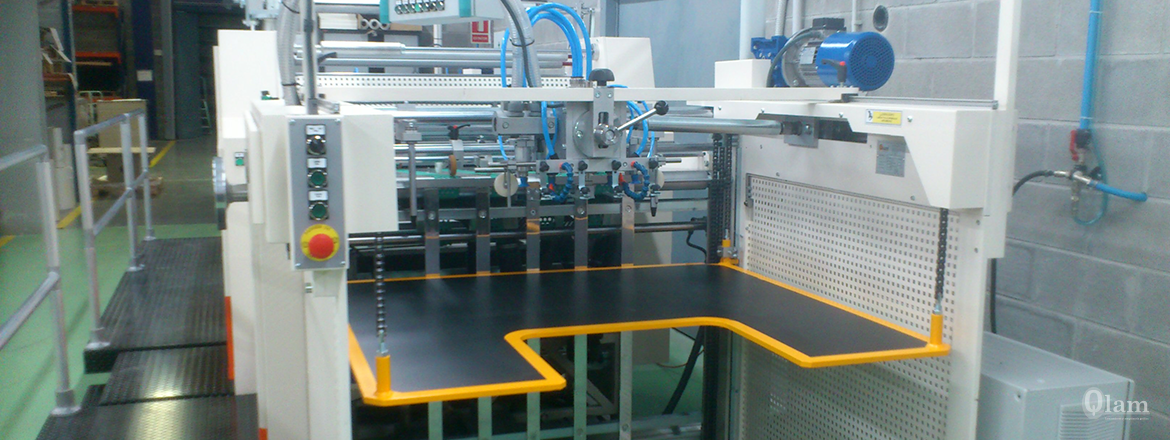

THERMOLAMINATING MACHINE MASTER

The laminating machine QLAM® MASTER is designed to laminate with polypropylene all types of paper and board by thermal lamination.

• - Ecological and automatically.
• - High production capacity in large formats.
• - Technology adapted for long works.
• - Easy and intuitive handling.

MASTER is the follows main parts:

• - Automatic sheet feeder.
• - Hot roller Chrome and polished mirror finish with hydraulic pressure.
• - Bobbin group with expandable pneumatic shaft.
• - Sheets separator.
• - System anticurling.
• - System cut leftover out of the bobibin.
• - Automatic stacker.

Equipped with control of maneuver by means of automaton and touch screen to control the utilities of the machine.

MAIN FEATURES

	MOD. MASTER 72	MOD. MASTER 102
Maximum sheet size	72 x 102 cm	102 x 102 cm
Minimum sheet size	30 x 25 cm	30 x 25 cm
Maximum mechanical speed	50 m/min	50 m/min
Paper thickness	110 - 450 gr/m2	110 - 450 gr/m2
Total power	23 Kw	25 Kw
Dimensions mcahine	1'50 x 2'60 x 5'4 m	1'75 x 2'60 x 5'4 m
Air compressed a 6 bar	36 l/min	36 l/min

* Possibility to manufacture the MASTER 102 on high (120 cm stack).

+ INFO

• Design and Production: Qlam®
