LAMINATING MACHINE MOD. SAB

"REDUCED SIZE THERMOLAMINATOR AND SINGLE DESIGN."

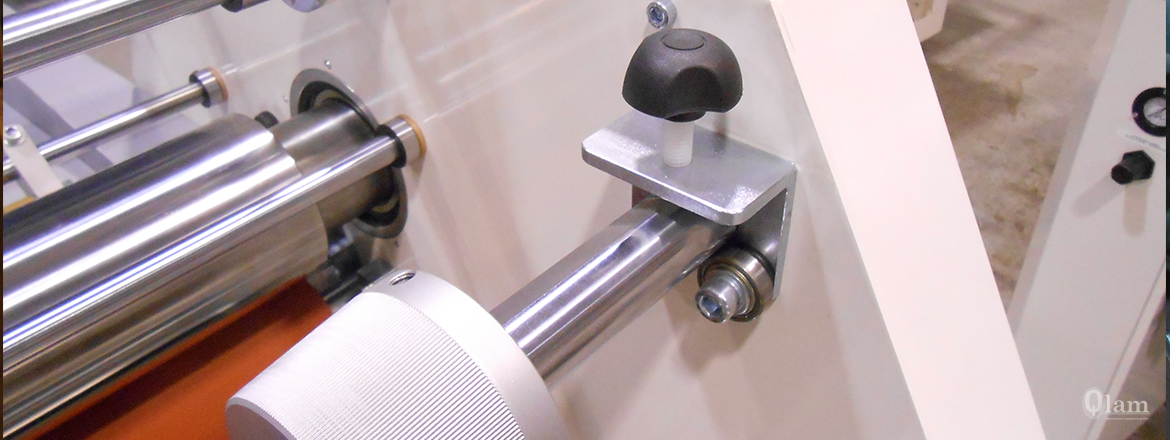

Machine SAB-1
Machine SAB-2

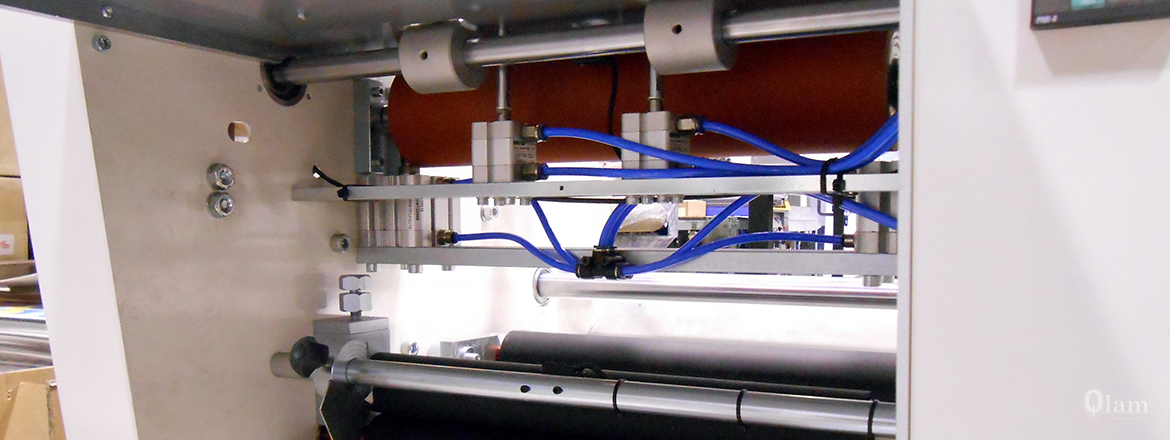

Machine SAB-3
Machine SAB-4

LAMINATING MACHINE SAB

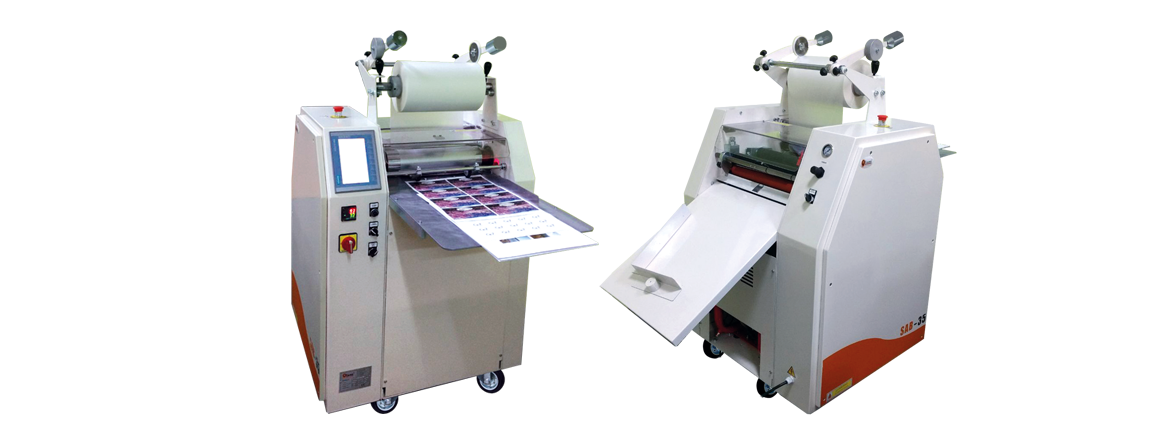

The SAB-35 is the new laminating machine with treated polypropylene the most compact QLAM® on the market. Designed to laminate with BOPP film thermo-laminable all types of paper and cardboard.

  • - Ideal for small formats and short runs.
  • - Specially designed for laminated DIGITAL PRINTING
  • - Technology adapted to the production.
  • - Convenience and easy handling in the lamination process.
  • - Greater versatility and autonomy for high-quality graphic finishes.
The SAB is composed of a single module with the foloings parts:

  • - Sheet feeder by hand.
  • - Hot roller Chrome and polished mirror finish with hidraulic pressure.
  • - Group bobbin (PE y PET) with electromagnetic clutch and brake.
  • - Sheets separator.
  • - Automatic stacker.
  • - Antistatic bars.
Equipped with control of maneuver by means of automaton and touch screen to control the utilities of the machine.


MAIN FEATURES

MODEL SAB-35
Maximum sheet size 35 x 50 cm
Minimum sheet size 20 x 15 cm
Maximum mechanical speed 12 m/min
Paper thickness 130 - 300 gr/m2
Total power 2,5 Kw
Dimensions mcahine 1'6 x 0'8 x 1'5 mts
