LAMINADORA MODEL KAMBA

"THE THERMOLAMINATING FOR SHORT PRODUCTIONS AND HIGH QUALITY."

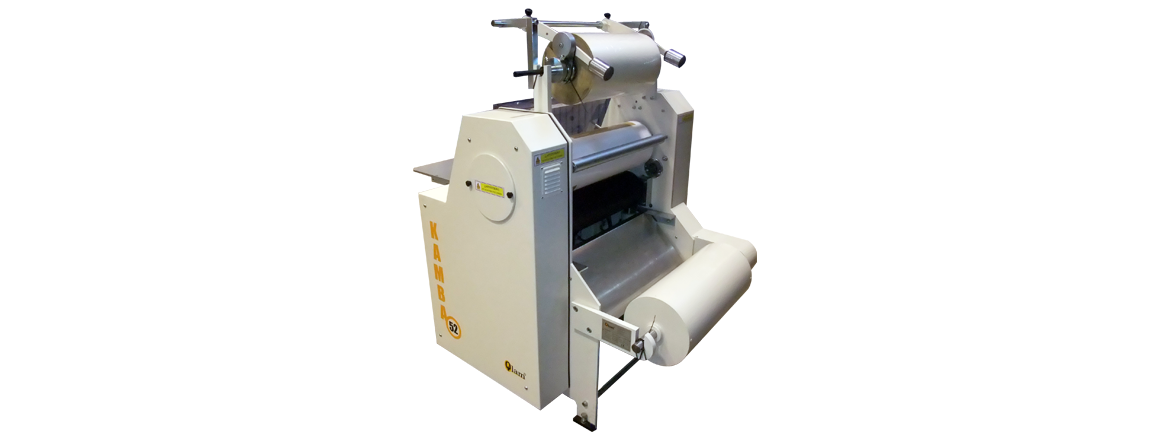

Machine KAMBA-1

LAMINATING MACHINE KAMBA

KAMBA is designed to laminate with polypropylene, all types of paper and paperboard by thermal lamination. Recommended for small productions, achieving great agility of work at a minimum cost.

  • - Optimal quality and comfort in the laminate.
  • - Reliable and ecological.
The KAMBA is composed of a single module with the followings parts:

  • - Feeder by hand and exit rewind.
  • - Automatic overlap system.
  • - Format programming.
  • - System cut leftover above the bobbin.
  • - Hydraulic pressure.

MAIN FEATURES

MODEL KAMBA-52 MODEL KAMBA-72
Maximum sheet width 52 cm 72 cm
Maximum mechanical speed 17 m/min 17 m/min
Paper thickness 110 - 450 gr/m2 110 - 450 gr/m2
Total power 5 Kw 5 Kw
Dimensions machine 1'15 x 1'43 x 1'35 m 1'35 x 1'43 x 1'65 m

+ INFO

  • Design and Production Qlam®
